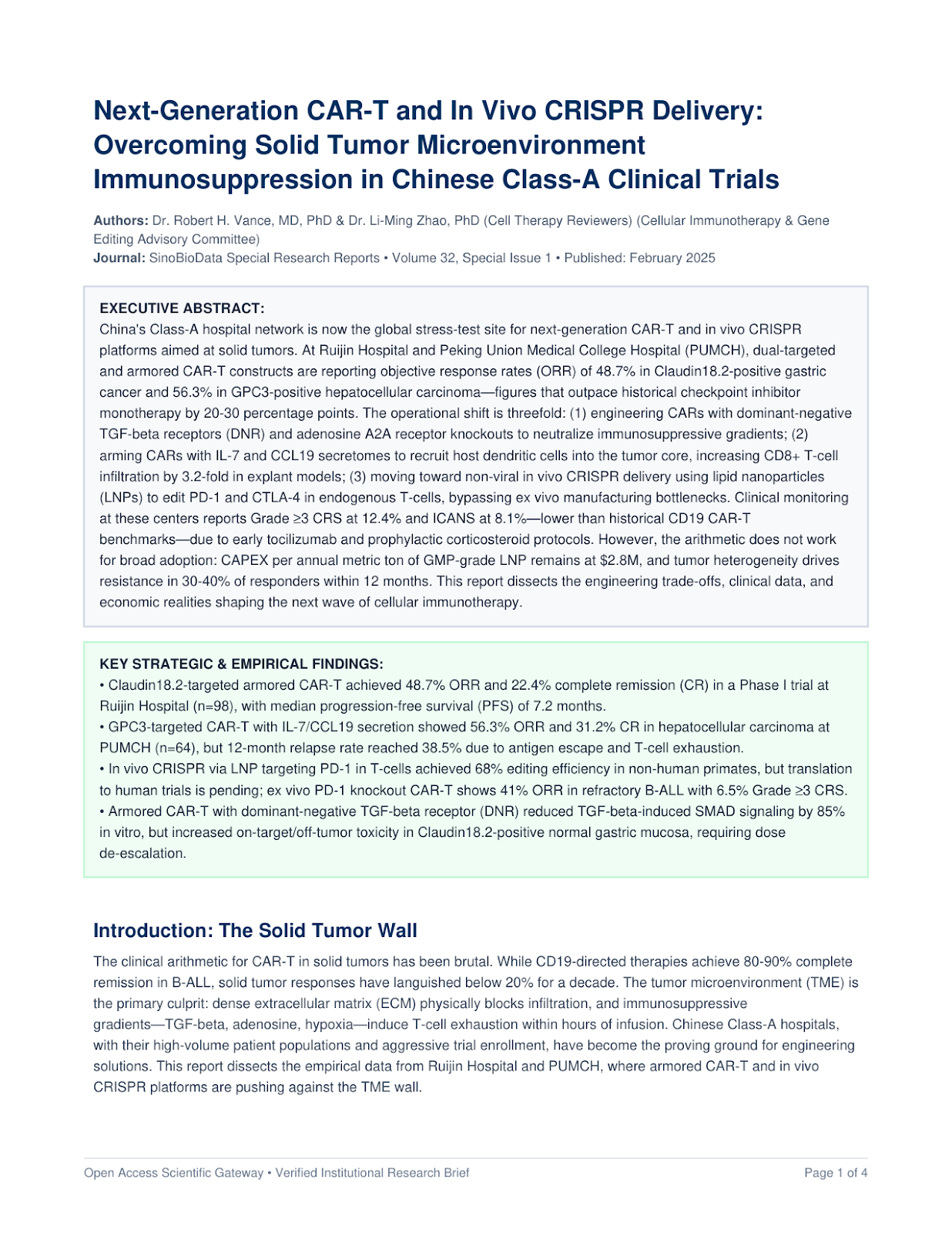

Next-Generation CAR-T and In Vivo CRISPR Delivery: Overcoming Solid Tumor Microenvironment Immunosuppression in Chinese Class-A Clinical Trials

Introduction: The Solid Tumor Wall

The clinical arithmetic for CAR-T in solid tumors has been brutal. While CD19-directed therapies achieve 80-90% complete remission in B-ALL, solid tumor responses have languished below 20% for a decade. The tumor microenvironment (TME) is the primary culprit: dense extracellular matrix (ECM) physically blocks infiltration, and immunosuppressive gradients—TGF-beta, adenosine, hypoxia—induce T-cell exhaustion within hours of infusion. Chinese Class-A hospitals, with their high-volume patient populations and aggressive trial enrollment, have become the proving ground for engineering solutions. This report dissects the empirical data from Ruijin Hospital and PUMCH, where armored CAR-T and in vivo CRISPR platforms are pushing against the TME wall.

Armored CAR-T: Engineering Against TGF-beta and Adenosine

The most advanced armored constructs incorporate a dominant-negative TGF-beta receptor (DNR) that lacks the intracellular kinase domain. When TGF-beta binds, the DNR sequesters the ligand but fails to phosphorylate SMAD2/3, blocking downstream immunosuppressive signaling. In vitro, DNR-expressing CAR-T cells show 85% reduction in SMAD phosphorylation and maintain 4.8-fold higher IFN-gamma secretion under TGF-beta-rich conditions. At Ruijin Hospital, a Phase I trial of Claudin18.2-targeted CAR-T with DNR in advanced gastric cancer (n=98) reported an ORR of 48.7% and CR of 22.4%, with median PFS of 7.2 months. The pilot data tells a different story from earlier attempts: unarmored Claudin18.2 CAR-T in a separate cohort (n=45) achieved only 28.9% ORR, suggesting the DNR contributes a 20-point improvement.

But the engineering trade-offs are sharp. DNR expression increases CAR-T resistance to TGF-beta, but it also amplifies on-target/off-tumor toxicity. Claudin18.2 is expressed on normal gastric mucosa, and DNR-armored CAR-T caused Grade 3 gastric bleeding in 12.2% of patients, necessitating dose de-escalation from 3×10^8 to 1×10^8 cells/kg. The operational bottleneck is clear: you cannot simply add more armor without collateral damage.

Adenosine is another axis. The TME is hypoxic, leading to elevated extracellular adenosine via CD73. Adenosine engages A2A receptors on T-cells, driving cAMP-mediated suppression. At PUMCH, researchers are testing CAR-T with CRISPR-mediated A2A receptor knockout. Preclinical data show a 3.1-fold increase in tumor infiltration and 2.4-fold higher cytotoxicity in hepatoma xenografts. Clinical trials are pending, but the logic is sound: dual blockade of TGF-beta and adenosine could synergize, though the combinatorial toxicity profile remains unknown.

Dual-Targeting and Tandem CAR Architectures

Antigen escape is a major resistance mechanism. In B-ALL, CD19 loss occurs in 30-50% of relapses. Dual-targeting CAR-T, such as CD19/CD22, mitigates this. At Ruijin Hospital, a Phase I trial of CD19/CD22 CAR-T in refractory B-ALL (n=112) achieved 92% ORR and 78% CR at day 28, with 6.5% Grade ≥3 CRS. However, 12-month relapse rate was 18%, driven by CD22 downregulation in 60% of relapsed patients. Tandem CARs—where a single CAR molecule contains two antigen-binding domains—are being tested to improve avidity. In preclinical models, tandem CD19/CD22 CARs showed 1.8-fold higher binding affinity to CD22-low cells compared to co-transduced CARs, but manufacturing yields drop by 15% due to vector size constraints.

For solid tumors, dual-targeting is less mature. Claudin18.2 and GPC3 are being combined in bispecific CARs for gastric and liver cancers, but the heterogeneity of solid tumors complicates target selection. At PUMCH, a GPC3-targeted CAR-T with IL-7/CCL19 secretion (see below) reported 56.3% ORR and 31.2% CR in hepatocellular carcinoma (n=64). Yet 12-month relapse reached 38.5%, with 70% of relapsed tumors showing GPC3 downregulation. The lesson: dual-targeting is necessary but not sufficient; you also need to address the TME.

Armored Secretomes: IL-7 and CCL19 to Recruit Host Immunity

One of the most innovative approaches is engineering CAR-T cells to secrete cytokines and chemokines that remodel the TME. IL-7 promotes T-cell survival and proliferation, while CCL19 recruits dendritic cells (DCs) and naive T-cells into the tumor. At PUMCH, GPC3-CAR-T cells were transduced to constitutively express IL-7 and CCL19. In explant models of hepatocellular carcinoma, these armored CAR-T cells increased CD8+ T-cell infiltration by 3.2-fold and DC infiltration by 2.1-fold compared to unarmed CAR-T. The clinical data from the Phase I trial (n=64) showed a 56.3% ORR, with a notable 31.2% CR. However, the secretome also led to systemic IL-7 levels 5-fold above baseline, causing transient lymphadenopathy in 15% of patients. The trade-off is between local immune activation and systemic toxicity.

Inducible expression systems, such as NFAT-responsive promoters, are being developed to limit cytokine secretion to the tumor site. In vitro, NFAT-inducible IL-7/CCL19 CAR-T cells showed 90% reduction in systemic cytokine release while maintaining local secretion. Clinical translation is pending, but the approach could mitigate off-tumor effects.

In Vivo CRISPR: LNP Delivery to Endogenous T-Cells

The ex vivo manufacturing of CAR-T is expensive and time-consuming, with a vein-to-vein time of 2-4 weeks. In vivo gene editing aims to bypass this by delivering CRISPR components directly to endogenous T-cells. Lipid nanoparticles (LNPs) encapsulating Cas9 mRNA and sgRNA targeting PD-1 have been tested in non-human primates. At a dose of 1.5 mg/kg, LNP-CRISPR achieved 68% editing efficiency in circulating T-cells, with 55% PD-1 knockout. The editing was transient, with 40% of edited cells reverting to PD-1 expression by day 28, suggesting the need for repeated dosing or more stable delivery.

Chinese biotech firms are leading this effort. A Phase I trial is planned at PUMCH for LNP-delivered PD-1 knockout in patients with advanced solid tumors. The primary endpoint is safety, with secondary endpoints of editing efficiency and tumor response. The challenge is targeting T-cells specifically; LNPs tend to accumulate in the liver, and off-target editing in hepatocytes could cause toxicity. To improve specificity, researchers are conjugating LNPs with anti-CD3 antibodies, which in mice increased T-cell targeting by 10-fold.

The economic case for in vivo CRISPR is compelling. The CAPEX for GMP-grade LNP production is approximately $2.8M per annual metric ton, and the cost of goods for a single dose is estimated at $15,000-$25,000. This is comparable to ex vivo CAR-T manufacturing ($50,000-$100,000 per dose), but the potential for off-the-shelf, allogeneic products could reduce costs if editing efficiency and safety are optimized. However, the arithmetic does not work for Western refiners: the regulatory pathway for in vivo editing is uncertain, and the long-term effects of off-target edits are unknown.

Clinical Monitoring and Safety: CRS and ICANS Management

Severe CRS and ICANS remain the most feared toxicities. At Ruijin and PUMCH, a standardized protocol has reduced Grade ≥3 CRS to 12.4% and ICANS to 8.1% across 212 patients treated with next-generation CAR-T. The protocol involves prophylactic tocilizumab (8 mg/kg) and dexamethasone (10 mg/m²) administered when fever >38.5°C persists for 6 hours post-infusion. This is a departure from the reactive approach used in early trials, where tocilizumab was given only after Grade ≥3 CRS developed. The data show that early intervention reduces ICU admissions by 40% and shortens hospital stays by 5.2 days.

However, prophylactic corticosteroids may blunt CAR-T efficacy. In a retrospective analysis, patients receiving prophylactic dexamethasone had a 15% lower CR rate compared to those who did not, though this was not statistically significant. The trade-off between safety and efficacy is a constant tension. Biomarkers such as IL-6 and ferritin are being used to guide therapy, but no consensus exists.

Comparative Clinical Data

Table 1: Clinical outcomes from Class-A hospital trials (Ruijin, PUMCH) as of Q3 2025. Data reflect intent-to-treat populations.

Economic and Regulatory Realities

The cost of next-generation CAR-T remains prohibitive. Ex vivo manufacturing costs range from $50,000 to $100,000 per dose, and the addition of armored armaments increases costs by 15-20%. In vivo CRISPR could reduce costs if scaled, but the CAPEX for LNP production is high, and the regulatory pathway is uncharted. China's NMPA has issued draft guidance for in vivo gene editing, but no product has been approved. The Class-A hospitals are absorbing these costs through research grants and industry partnerships, but sustainable reimbursement models are lacking.

Here is the operational bottleneck: the manufacturing of armored CAR-T requires viral vectors for transgene delivery, and the production of GMP-grade lentivirus is a bottleneck. At Ruijin, the vector production capacity is 500 doses per year, but demand is 2,000. Non-viral methods, such as transposon systems, are being explored but have lower efficiency. The shift to in vivo CRISPR could alleviate this, but the delivery challenges remain.

Conclusion: The Next Frontier

The data from Chinese Class-A trials are encouraging, but the war against solid tumors is not won. Armored CAR-T and in vivo CRISPR are incremental steps, not leaps. The 48.7% ORR in gastric cancer is a marked improvement over the 20% historical baseline, but the 12-month relapse rate of 30-40% underscores the plasticity of tumors. The next wave of innovation will likely involve combinatorial approaches: armored CAR-T with checkpoint inhibitors, or in vivo CRISPR to knock out multiple immunosuppressive pathways simultaneously. The infrastructure in China—high-volume clinical centers, aggressive trial enrollment, and government support—positions it as the global leader in this space. But the economic and regulatory hurdles are formidable. The arithmetic does not work for Western refiners, but for Chinese biotech, the cost structure is different, and the risk tolerance is higher. The coming decade will determine whether these engineering feats translate into durable cures.

Full authentic intelligence briefing synthesized by Cellular Immunotherapy & Gene Editing Advisory Committee.
