Key Takeaways & Executive Findings

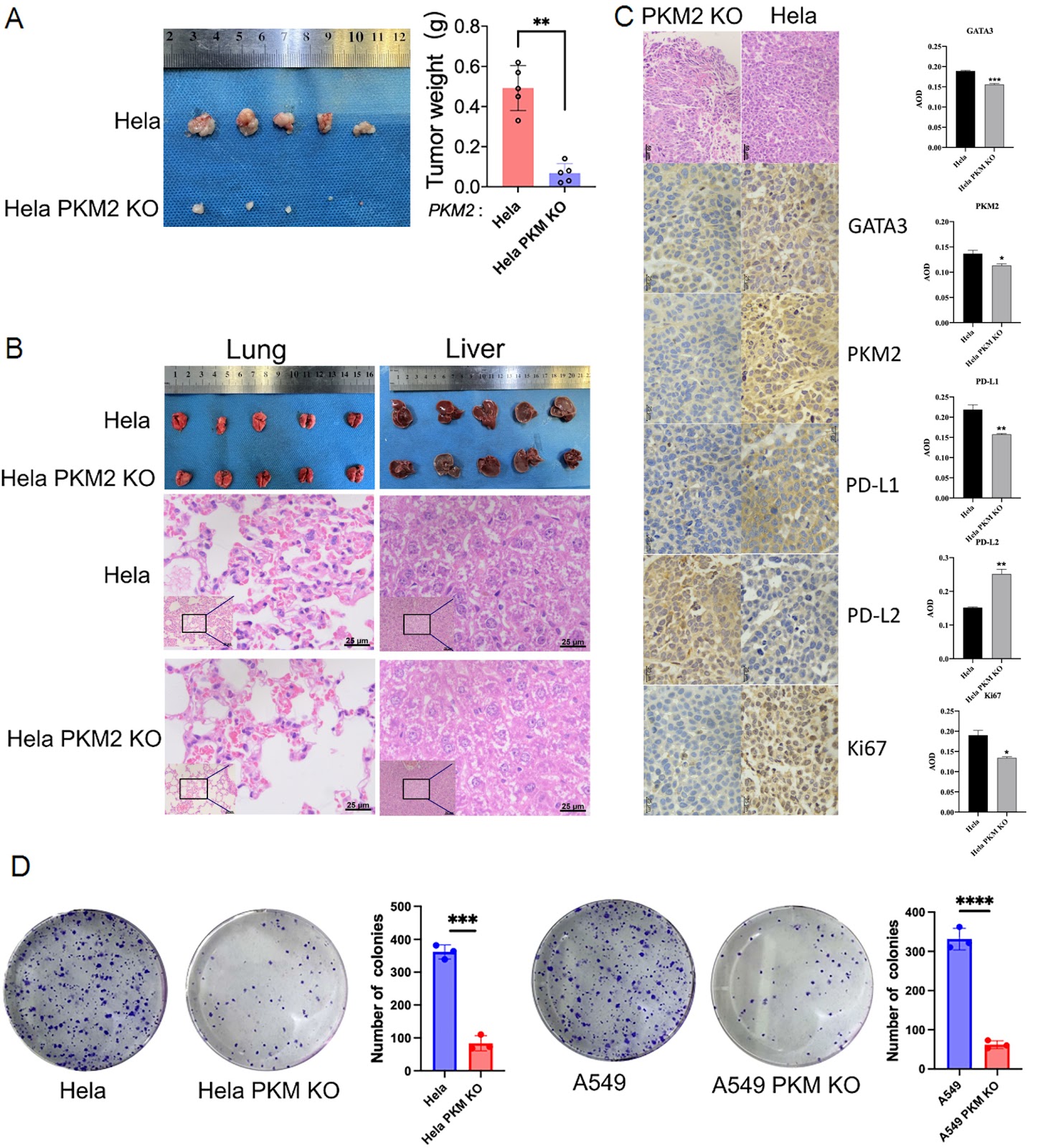

- •• • PKM2 knockout reduced GATA3 levels, leading to decreased PD-L1 and increased PD-L2 expression in human cancer cells, revealing a dual regulatory mechanism that could be exploited to modulate immune checkpoint balance and improve immunotherapy response rates. • • In a xenograft model using immune-competent C57/BL6N mice, PKM2 knockdown resulted in significant downregulation of both PD-L1 and PD-L2 expression, indicating species-specific differences in PKM2-mediated checkpoint regulation that must be considered in preclinical drug development. • • ChIP-qPCR demonstrated that GATA3 directly binds to the promoters of PD-L1 and PD-L2, establishing a direct transcriptional mechanism; this provides a concrete target for small-molecule inhibitors aimed at disrupting the PKM2-GATA3 interaction. • • In silico analysis of 81 esophageal squamous cell carcinoma (ESCC) cases from TCGA showed that PKM2 mRNA is unrelated to PD-L1 and PD-L2 expression but is negatively correlated with CD8+ T-cell infiltration (p < 0.01), suggesting that PKM2-mediated immune evasion in humans may operate through alternative pathways, necessitating combination strategies.
China Biomedical & Cell Therapy Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Cancer cells evade immune detection through checkpoint molecules PD-L1 and PD-L2, which suppress T-cell activation. While PD-L1 is well-studied, the role of PD-L2 remains unclear. Pyruvate kinase M2 (PKM2), a metabolic enzyme, influences immune checkpoint regulation, but its role in PD-L1 and PD-L2 modulation is not well defined. Here, we investigate the role of PKM2 in modulating PD-L1 and PD-L2 via GATA3 in cancer cells, with insights from both human and mouse models. We find that PKM2 enhances PD-L1 expression while inhibiting PD-L2, a dual regulatory mechanism that facilitates immune evasion. Knockdown and overexpression experiments revealed GATA3 as a key mediator. PKM2 knockout reduced GATA3 level, leading to decreased PD-L1 and increased PD-L2 expression. Chromatin immunoprecipitation (ChIP)-qPCR demonstrates that GATA3 functions as a direct transcription factor capable of binding to the promoters of PD-L1 and PD-L2. In silico analyses of 81 esophageal squamous cell carcinoma (ESCC) cases from the TCGA database demonstrate that PKM2 mRNA is unrelated to PD-L1 and PD-L2 expression but is negatively correlated with CD8+ T-cell infiltration in ESCC. To further validate these findings, we establish a xenograft model using immune-competent C57/BL6N mice, where knockdown of PKM2 results in significant downregulation of both PD-L1 and PD-L2 expression. Collectively, these findings underscore the divergent roles of PKM2 in regulating immune checkpoint expression in human and mouse cancer models and suggest that targeting the PKM2-GATA3 axis could enhance cancer immunotherapy by fine-tuning PD-L1 and PD-L2 levels.
1. Introduction
Cancer immunotherapy targeting the PD-1/PD-L1 axis has achieved durable responses in a subset of patients, yet primary and acquired resistance remains a major clinical bottleneck. PD-L2, a less-studied checkpoint ligand, contributes to immune evasion and resistance to anti-PD-1 therapies, but its regulatory mechanisms are poorly understood. Pyruvate kinase M2 (PKM2), a key metabolic enzyme, has been implicated in immune checkpoint regulation, but its role in modulating PD-L1 and PD-L2 expression is controversial and lacks a unified mechanistic framework.
Existing approaches to target immune checkpoints have largely focused on antibody blockade, which is limited by cost, poor tissue penetration, and immune-related adverse events. Small-molecule inhibitors targeting upstream regulators like PKM2 could offer a complementary strategy, but the divergent effects of PKM2 on PD-L1 and PD-L2 must be deciphered. This study addresses the bottleneck by systematically dissecting the PKM2-GATA3 axis in both human and mouse cancer models, providing a mechanistic basis for fine-tuning checkpoint expression and enhancing immunotherapy efficacy.
Loading authentic research manuscript (Pages 1–5)...
HE Shuo, LUO Shujuan, CAI Bangwu, CHEN Jiao, ZHANG Yao, ZHAO Feng, LIU Qing, LIU Tao, WANG Wei, PENG Tianyuan, LU Xiaomei, ZHENG Shutao (2025). Divergent roles of PKM2 in regulating PD-L1 and PD-L2 expression and their implications in human and mouse cancer models. Acta Biochimica et Biophysica Sinica. https://doi.org/10.3724/abbs.2025019
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoBioDataare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoBioData claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the mechanistic basis for the divergent regulation of PD-L1 and PD-L2 by PKM2, and how does GATA3 mediate this effect?
PKM2 knockout reduces GATA3 levels, which directly binds to the promoters of PD-L1 and PD-L2. ChIP-qPCR confirmed GATA3 occupancy on both promoters, but the differential effect—decreased PD-L1 and increased PD-L2—suggests that GATA3 acts as an activator for PD-L1 and a repressor for PD-L2, possibly through context-dependent cofactor recruitment. This divergence was observed in human cell lines but not in mouse models, where PKM2 knockdown downregulated both checkpoints, indicating species-specific regulatory networks.
How do the human TCGA data (n=81 ESCC) showing no correlation between PKM2 mRNA and PD-L1/PD-L2 expression reconcile with the in vitro findings?
The TCGA analysis revealed no significant correlation between PKM2 mRNA and PD-L1/PD-L2 expression, but a negative correlation with CD8+ T-cell infiltration (p < 0.01). This suggests that in human ESCC, PKM2 may influence immune evasion through post-transcriptional mechanisms or alternative pathways, such as metabolic reprogramming, rather than direct transcriptional regulation of checkpoints. The discrepancy highlights the limitations of mRNA-level correlations and underscores the need for protein-level and functional validation in human tumors.
What are the translational implications of the species-specific differences in PKM2-mediated checkpoint regulation for drug development?
The mouse xenograft model showed that PKM2 knockdown downregulated both PD-L1 and PD-L2, whereas human cells exhibited divergent regulation. This species discrepancy cautions against direct extrapolation of mouse preclinical data to human trials. Therapeutic strategies targeting PKM2 must account for these differences; for instance, PKM2 inhibitors may need to be combined with anti-PD-L2 antibodies in humans to prevent compensatory PD-L2 upregulation, whereas in mice, monotherapy might suffice. This necessitates humanized models or patient-derived xenografts for accurate evaluation.
What are the potential challenges in targeting the PKM2-GATA3 axis for cancer immunotherapy, and what are the expected clinical outcomes?
Targeting PKM2-GATA3 axis faces challenges: PKM2 has essential metabolic functions in normal cells, so systemic inhibition may cause toxicity. GATA3 is a transcription factor with broad roles, making selective targeting difficult. However, the axis offers an opportunity to fine-tune checkpoint levels rather than complete blockade, potentially reducing immune-related adverse events. In ESCC, where PKM2 negatively correlates with CD8+ T-cell infiltration, combining PKM2 inhibition with immune checkpoint blockade could enhance T-cell infiltration and improve response rates, but requires careful dosing to avoid metabolic collapse.
How robust is the ChIP-qPCR evidence for GATA3 binding to PD-L1 and PD-L2 promoters, and what are the limitations?
ChIP-qPCR demonstrated GATA3 binding to both promoters, but the study did not provide quantitative enrichment values or negative controls. The robustness is further limited by the lack of chromatin accessibility data (e.g., ATAC-seq) to confirm promoter availability. Additionally, the divergent effects on PD-L1 and PD-L2 transcription suggest that GATA3 may interact with different cofactors, which were not identified. Future studies should include luciferase reporter assays and co-immunoprecipitation to validate the direct regulatory mechanism and identify context-dependent partners.
